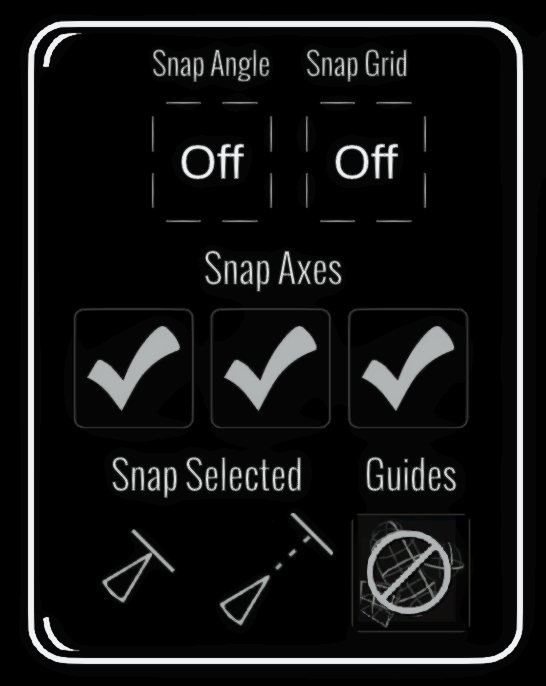

# Snap Settings Panel
The Snap Settings Panel provides controls for grid and angle snapping. For basic usage, see [Grid and Angle Snapping](/user-guide/grid-and-angle-snapping.md).
## Enhanced Snap Settings
The snap settings include several advanced features:
### Snap Axis Toggles
Position snapping and rotation snapping each have separate **X**, **Y** and **Z** toggles. Disabling an axis leaves that position or rotation component unsnapped. For example:
* Enable only Y-axis snapping to keep strokes at consistent heights while allowing free movement in X and Z
* Enable only X and Z to create a flat plane of snapped objects
* Enable all three axes for full 3D grid snapping
This is useful for creating rows, columns, or planes of duplicated objects while maintaining precise control over which dimensions are constrained.
Use the position-axis buttons with the grid interval and the rotation-axis buttons with the angle interval. Axis snapping is different from the [Transform Panel's axis locks](/user-guide/using-the-open-brush-tools-quick-tools-and-menu-panels/extras-panel/transform-panel.md): snapping rounds movement or rotation to increments, while a lock prevents that component from changing.
### Apply snapping to a selection
Snapping also works after objects have been placed. Select the strokes or media you want to adjust, then use the panel's position or rotation action to apply the current grid or angle settings to the selection. Position snapping respects the enabled position axes. Rotation snapping applies to widgets; brush strokes do not have an independent rotation to snap.
### Snap to Guides
When you have guides active in your scene, you can enable snapping to align selections and brush strokes to guide surfaces. This works with:
* Plane guides
* Sphere guides
* Line guides
* Mirror planes
This makes it easier to paint directly on guide surfaces or position imported models precisely on guides.
---
