Feature: Transform Panel and Snap Enhancements

PreviousXR Framework BetaNextFeature: Improved GLTF Importer

Last updated 1 month ago

Status: Released in

What does it do?

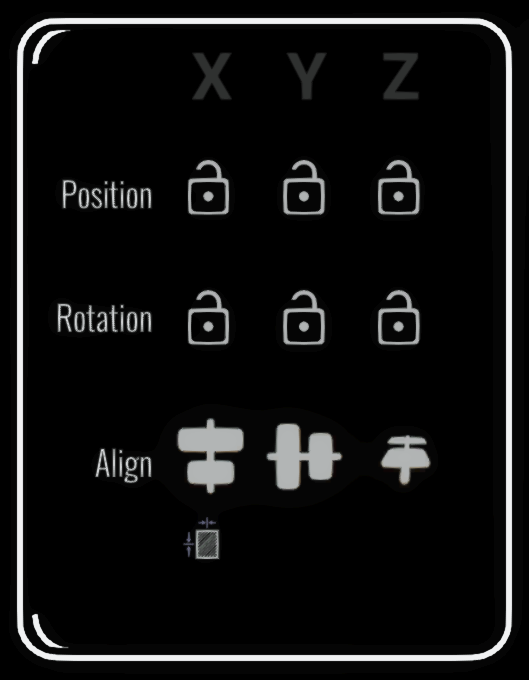

A new panel allows for precise position/rotation/scale changes to brush strokes and imported objects.

  1. Enter an exact value to change the position, rotation or scale of the current selection

  2. Lock any axis so you can only move the selection along a line or in a plane

  3. Lock rotation axes in a similar fashion.

  4. Control which axes respond to the snap grid

  5. Align all the objects or brush strokes you've selected in various ways

  6. Distribute all the objects or brush strokes you've selected so they are spaced evenly.

We've improved the Snap Settings panel:

  1. You can turn position and rotation snapping on or off for each axis independently

  2. You can also snap all the currently selected objects

  3. You can turn on or off the ability to snap the selected objects to guides

What's it good for?

Creating regular arrangements of strokes or precisely positioning/orientating parts of your sketch.

How do I install it?

Where do I find the new Transform Panel?

It should appear automatically.

Known Issues

(To do)

How do I get help

I'm on UK time but I check in fairly regularly.

Can I see it in action?

(To do)

Download a build for your headset from the link above and unzip it. You can run the Windows exe directly. To install the Quest apk use SideQuest:

Come over to the Open Brush Discord: and chat to me ( andybak#5425 ).

https://uploadvr.com/sideloading-quest-how-to/
https://discord.openbrush.app
v2.4
